Grinding Ball and Grinding Cylpebs

Grinding Ball size range from 12-125 mm, 45-65 HRC, 1-23 % Cr. content;

Grinding Cylpeb of required sizes 45-65 HRC, 1-23 % Cr. content.

The Grinding Media is produced by full-Auto casting lines, certified under international quality standards.

We guarantee our Grinding Ball has low breakage rate , lower wear of consumption, and fast delivery terms.

Specification Available of Grinding Ball and Grinding Cylpebs

Name	Chemical Element（%）
Name	C	Si	Mn	Cr	Mo	Cu	P	S
High-Cr Alloyed Grinding Ball and Grinding Cylpeb	2.0-3.3	≤1.0	0.3-1.5	10-23	0-3.0	0-1.2	≤0.06	≤0.06
Low-Cr Alloyed Grinding Ball and Grinding Cylpeb	1.8-3.6	≤1.5	0.3-1.5	1-6	0-1.0	0-0.8	≤0.06	≤0.06

Physical Property & Microstructure of Grinding Ball and Grinding Cylpeb

Name	Hardness （HRC）	Impact Ak（J/cm2）	Microstructure	Times of Falling Balls
High-Cr Alloyed Grinding Ball and Grinding Cylpeb	≥60	≥4.0	M+C+A	≤Φ80		≥15000
				≥Φ80		≥10000
Low-Cr Alloyed Grinding Ball and Grinding Cylpeb	≥45	≥2.5	P+C	≤Φ80	≥12000
				≥Φ80	≥10000
M-Martensite C-Carbide A-Austenite P-Pearlite

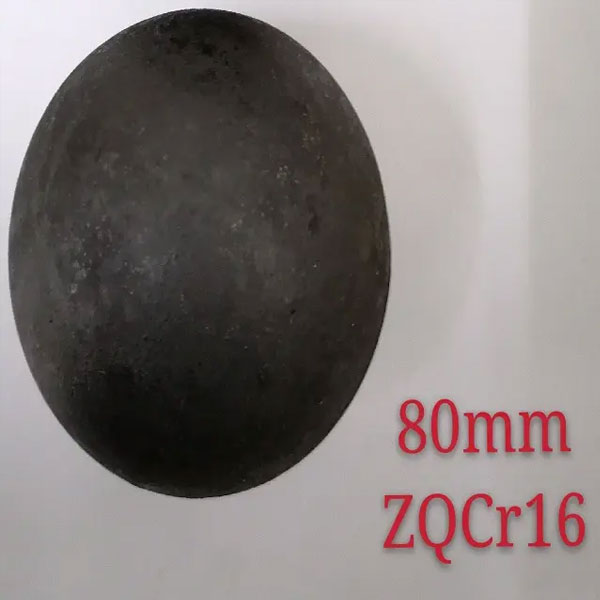

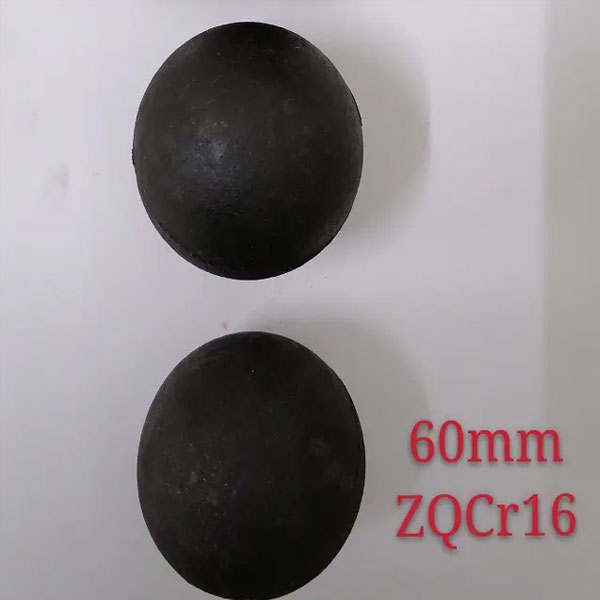

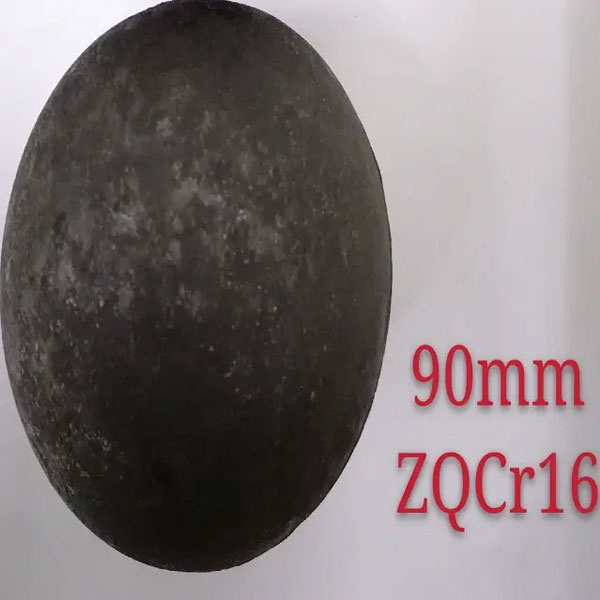

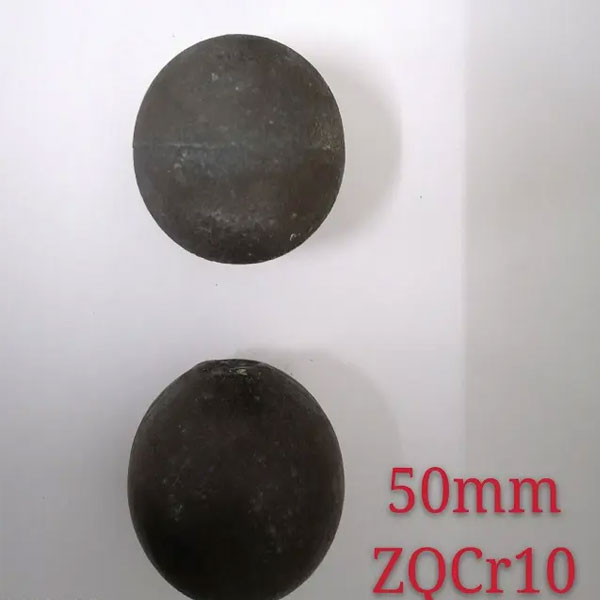

Grinding Ball Specification

Size（mm）	Weight（kg）	Quantity（pc/t）	Size（mm）	Weight（kg）	Quantity（pc/t）
Φ17	0.027	37037	Φ70	1.37	729
Φ20	0.032	31250	Φ80	2.05	487
Φ30	0.11	9091	Φ90	2.90	345
Φ40	0.25	3891	Φ100	4.00	250
Φ50	0.50	2000	Φ110	5.30	188
Φ60	0.86	1153	Φ120	6.80	147

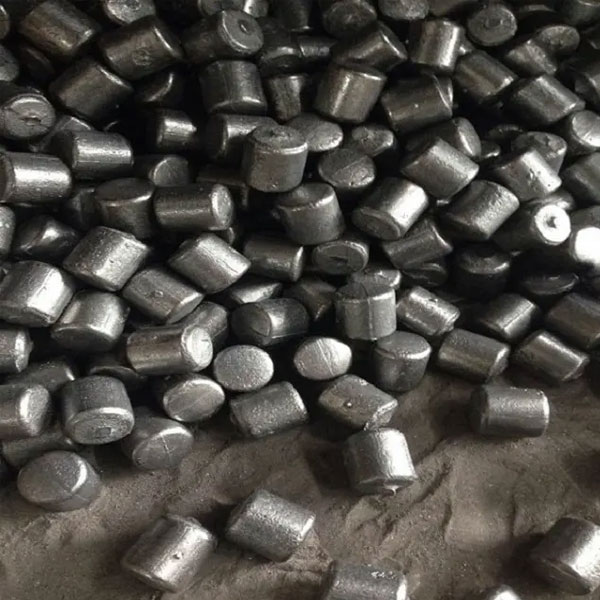

Grinding Cylpeb Specification

尺寸

Size（mm）

Ф10series

Ф12series

Ф14series

Ф16series

Ф18series

Ф20series

Ф25series

Ф30series

Ф35series

Ф40series

Ф45series

Ф50series

Note: Adjust the chemical content or add other alloying elements of Grinding Ball and Grinding Cylpeb according to customer needs is available.

Package of Grinding Ball and Grinding Cylpeb

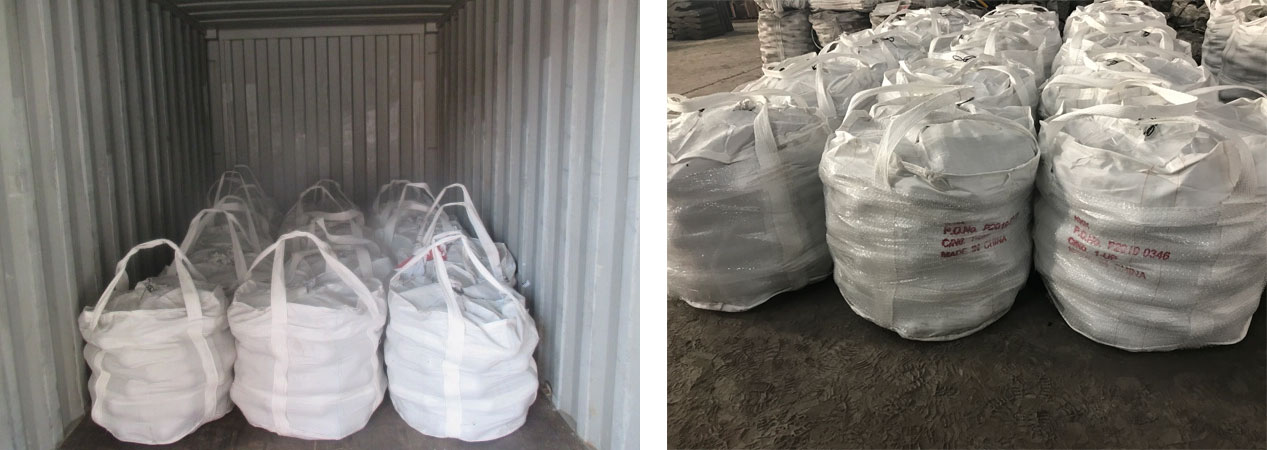

● Nylon Ton Bag: Net Weight: 1000 kgs; Gross Weight: 1002kgs

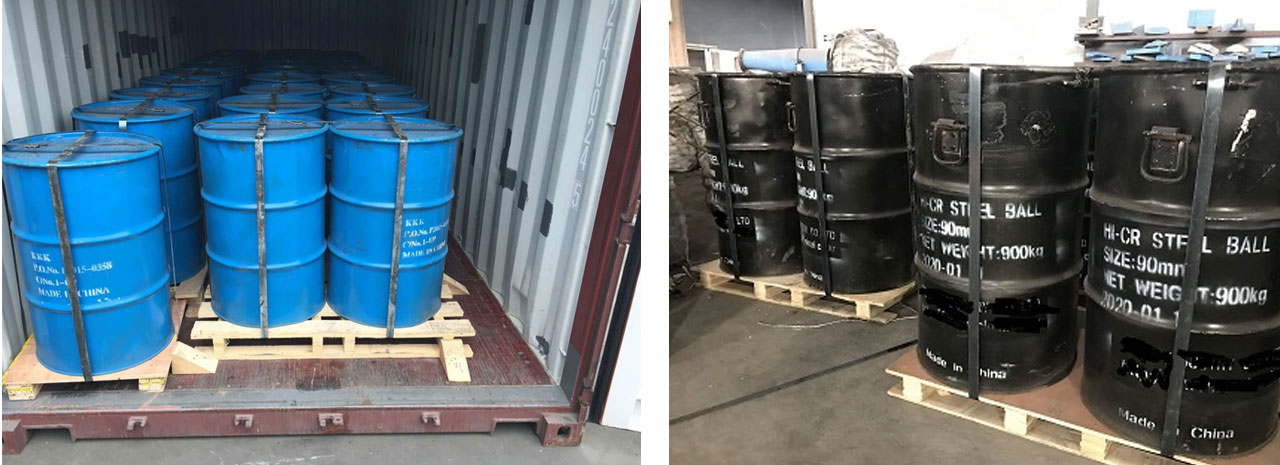

● Steel Drum: Net Weight: 850 – 900 kgs; Gross Weight: 865 – 915 kgs

Application of Grinding Ball and Grinding Cylpeb

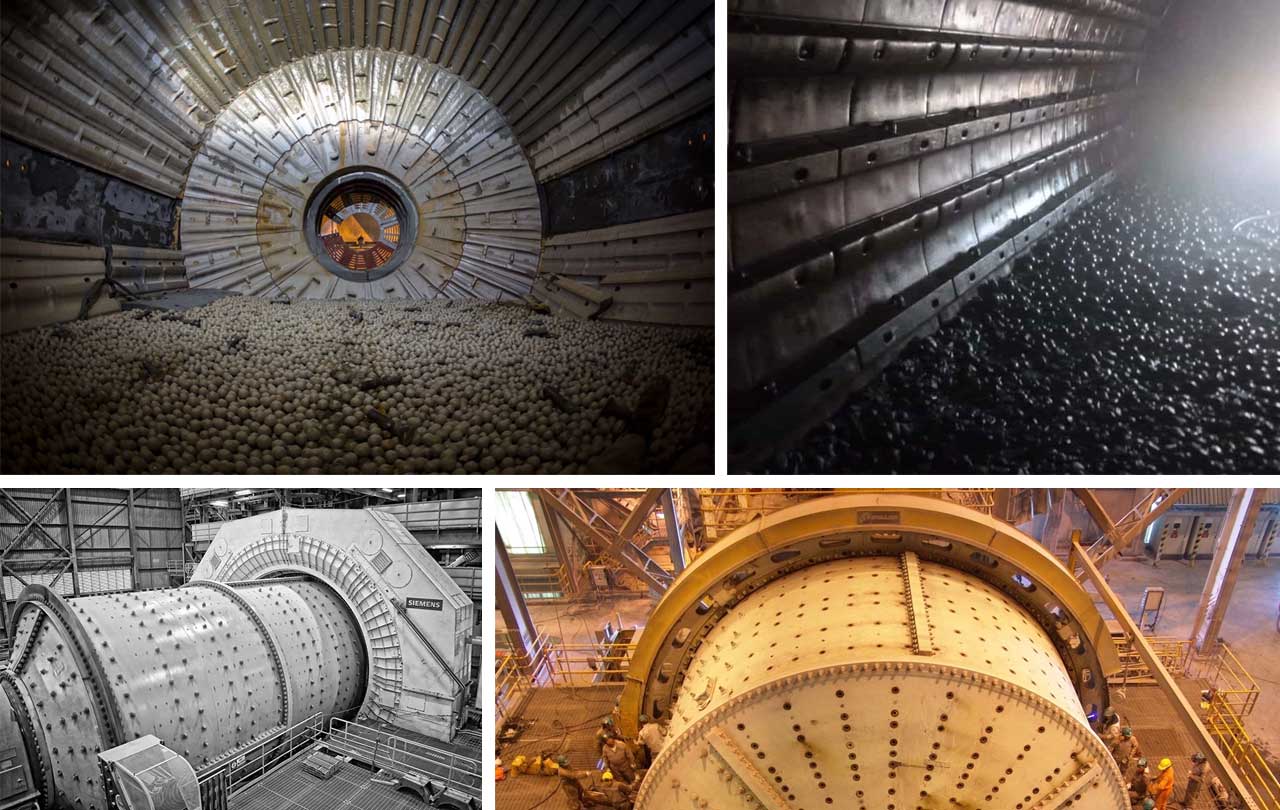

Our Grinding Ball and Grinding Cylpeb are widely used in the grinding stage for mining industry, cement industry, thermal power plant, paper-making and chemical industry etc.
